Description
Product overview

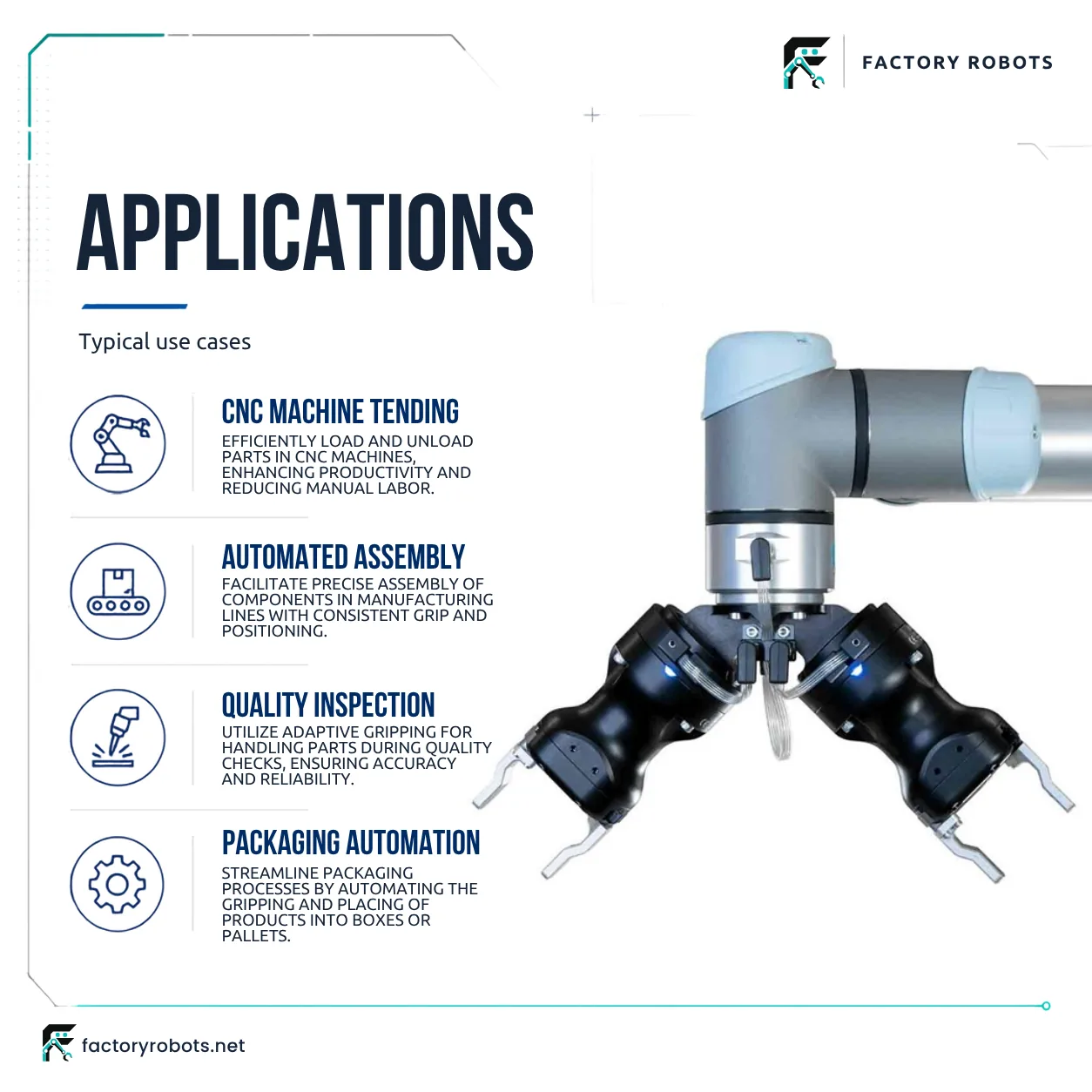

The Robotiq Hand-E Adaptive Gripper is a robotic end‑effector intended for CNC automation tasks. The record lists mechanical capability attributes relevant to end‑effector selection and system integration.
Technical attributes
- Payload: 7 kg
- Stroke: 50 mm
- Repeatability: 0.025 mm
- IP rating: IP67
Selection and integration notes
Compare the listed payload with the combined mass of tooling and the workpiece when specifying a robot and wrist. Use the stroke value to assess whether required part geometries and clamping spans are supported. Repeatability should be compared against process tolerances for part placement. IP67 indicates the enclosure protection level provided in the record; verify environmental sealing for the intended cell conditions.
