Description
Overview

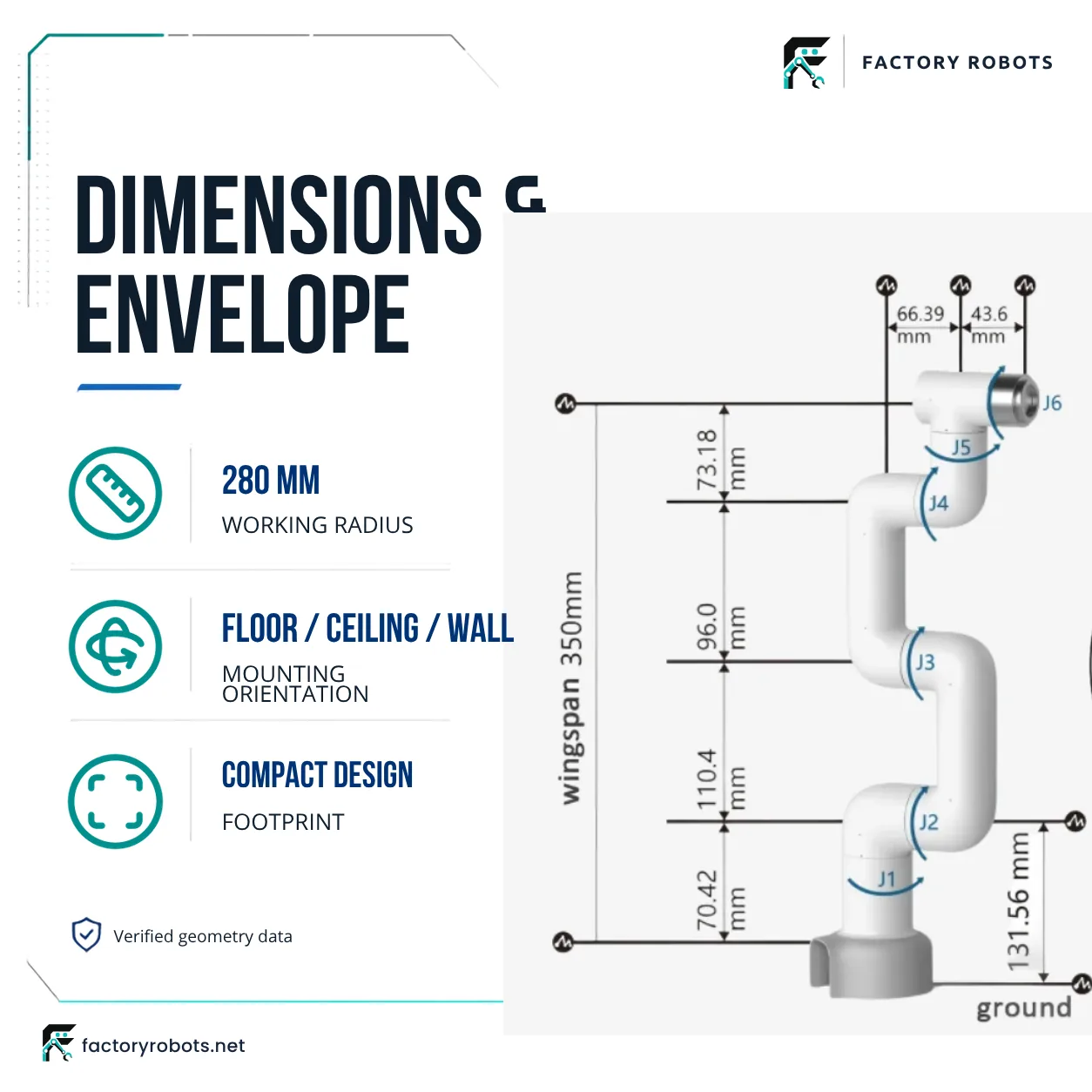

The myCobot 280 M5 is a small collaborative robot arm defined by these attributes: 250 g payload, 280 mm reach, ±0.5 mm repeatability and 6 axes. These values indicate its mechanical capacity and dimensional envelope for light handling and manipulation workflows.
Key attributes
- Payload: 250 g
- Reach: 280 mm
- Repeatability: ±0.5 mm
- Axes: 6
Selection and integration considerations
Compare the specified ±0.5 mm repeatability with the process tolerance for the intended task. Confirm that the 250 g payload covers the combined mass of end effector plus workpiece. Verify the 280 mm reach against the required workspace and fixturing. Controller, power, communication interfaces and safety equipment are not provided in this record and must be confirmed separately.
