Description
Overview

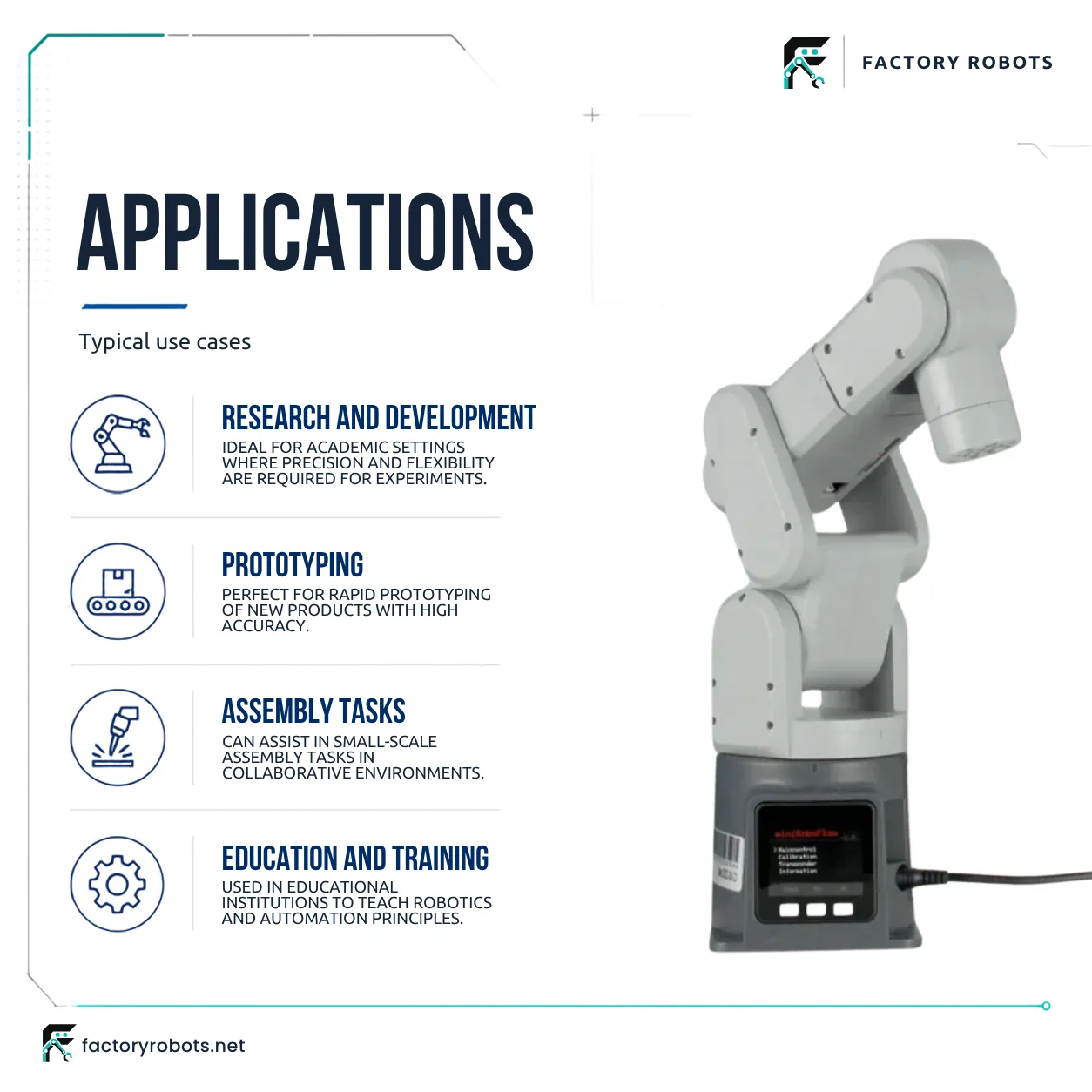

The mechArm 270 M5 is a collaborative robot arm with these supplied attributes: 250 g payload, 270 mm reach, ±0.5 mm repeatability and 6 axes. These values define its payload handling, workspace reach and nominal positioning repeatability.
Key attributes
- Payload: 250 g
- Reach: 270 mm
- Repeatability: ±0.5 mm
- Axes: 6
Selection and integration considerations
Compare the 250 g payload against the total mass of tooling plus the workpiece. Verify that the 270 mm reach covers the task envelope. Match the supplied ±0.5 mm repeatability to process tolerances. Controller, power, I/O and safety information are not included and must be confirmed separately.
