Description
Overview

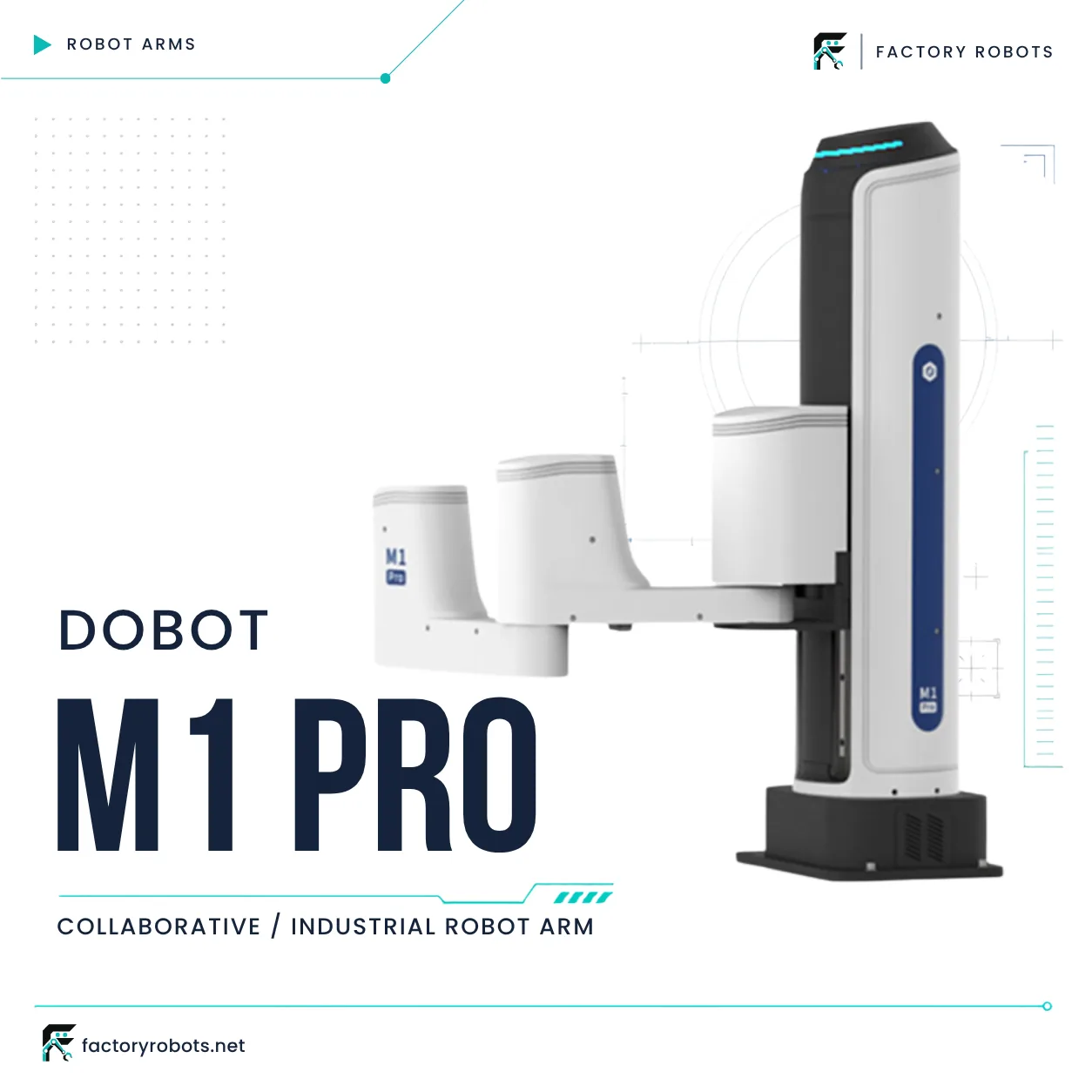

The DOBOT M1 Pro is a 4-axis collaborative robot arm specified with a 1.5 kg payload, 400 mm reach and repeatability of ±0.02 mm. The lower repeatability figure is presented for comparison with process tolerance requirements.
Key specifications
- Payload: 1.5 kg
- Reach: 400 mm
- Repeatability: ±0.02 mm
- Axes: 4
Integration considerations

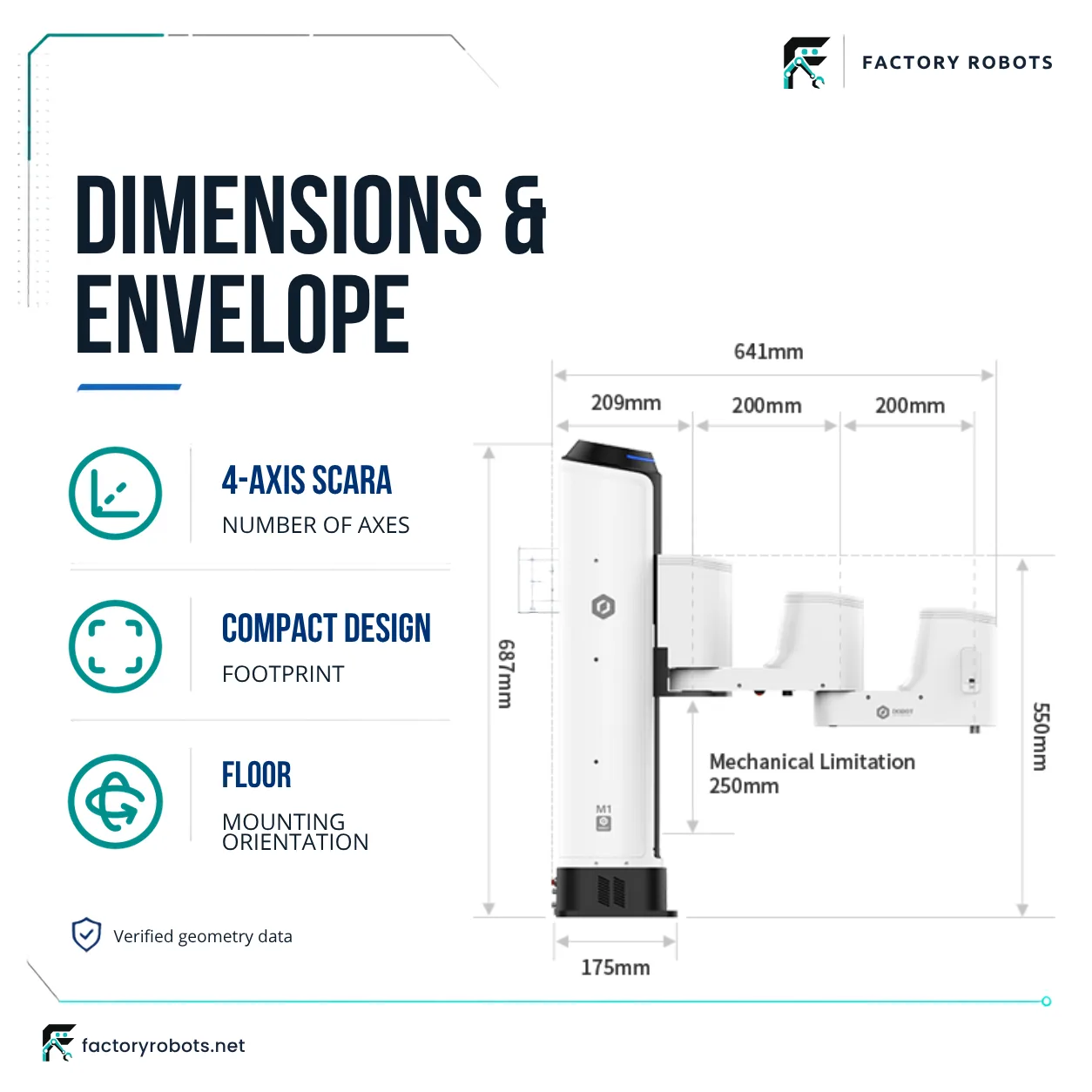

Match the 1.5 kg payload to the mass of tooling and the workpiece when planning end-of-arm tooling. Use the 400 mm reach to determine placement and clearances and confirm that the ±0.02 mm repeatability aligns with the process tolerance for the application.
